Sunday, February 26, 2012

Back to the Drawing Board...

Believe it or not, I have decided to revise my floor plans after corresponding with my mentors. In order to successfully portray the concept of freedom, the layout and spaces needed to be opened up and less structured.  The problem I was having with the original set of plans was that the spaces were confined and crammed together.  As a result I decided to utilize not just the first and second level of the facility, but the third level as well.  Shown below are the new layouts.

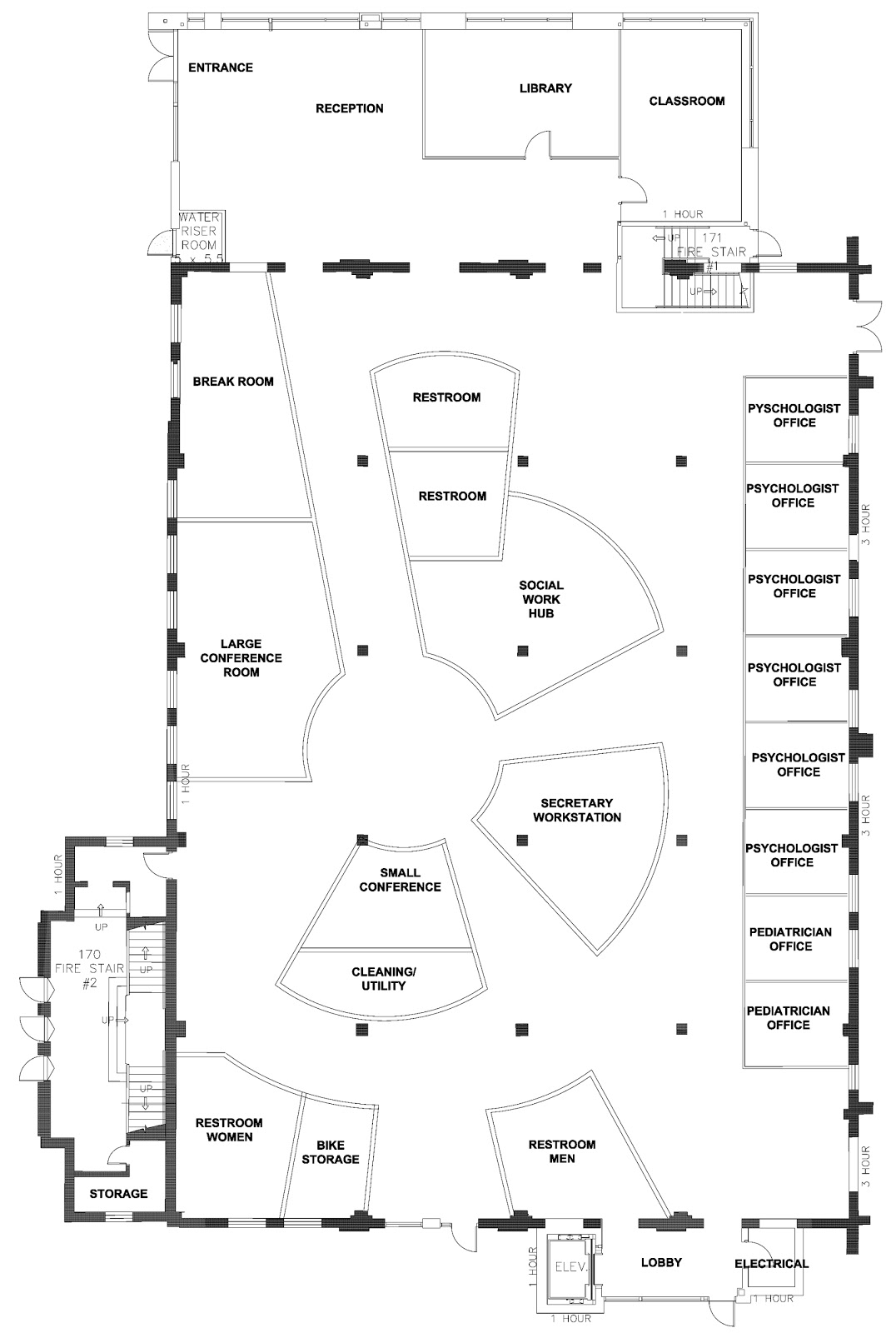

FIRST LEVEL

SECOND LEVEL

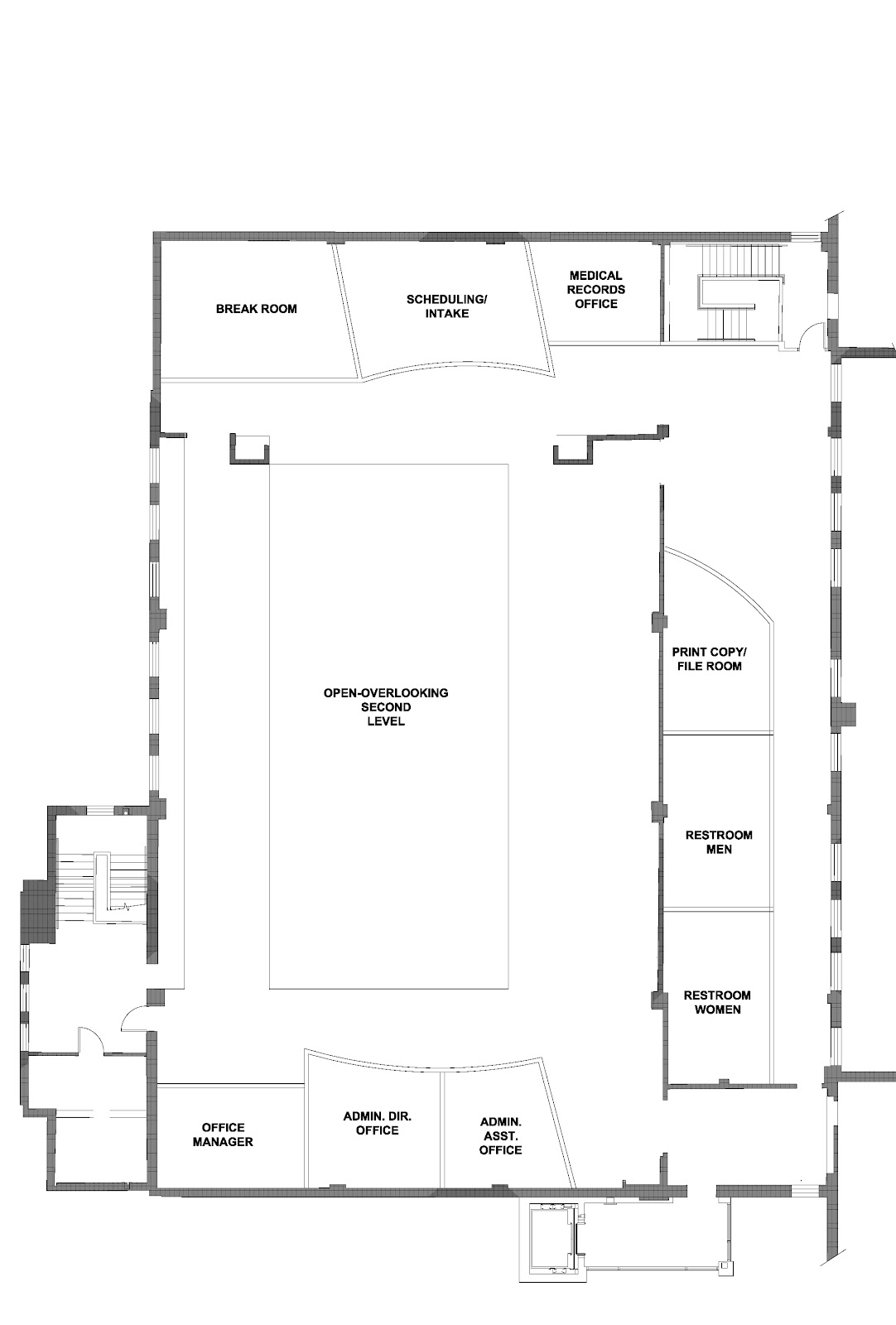

THIRD LEVEL
